FaceOFFx: balanced PIV JPEG 2000 portraits for .NET

FaceOFFx is a library for preparing a source-supported PIV portrait and encoding it within a chosen JPEG 2000 file-size ceiling. It runs locally with embedded face-detection and landmark models, and returns geometry, color and regional-compression review evidence.

Library · CLI · Encoding · Gallery · Development

Library

Use the FaceOFFx NuGet library for one fixed balanced recipe and one size control. This checkout builds version 4.0.0:

dotnet pack src/FaceOFFx/FaceOFFx.csproj -c Release -o artifacts/packages

Add that directory to your consumer's NuGet sources alongside NuGet.org for dependencies, then reference FaceOFFx version4.0.0. The library targets .NET8 and supports .NET8/9/10 applications. The examples below use the package built from this checkout.

using FaceOFFx;

using var encoder = new PivImageEncoder();
var result = await encoder.EncodeFileAsync("photo.jpg", PivFileSizeTarget.Minimum);
if (result.IsFailure)
{
    Console.Error.WriteLine(result.Error.Message);
    return;
}

await File.WriteAllBytesAsync("portrait.jp2", result.Value.ImageData);
foreach (var requirement in result.Value.VerificationRequirements)
    Console.WriteLine(requirement);

EncodeAsync(byte[], fileSizeTarget, cancellationToken) accepts in-memory input. Omitting the target selects Minimum. Reuse the encoder, await calls and dispose it when finished. Cancellation propagates as OperationCanceledException; expected processing failures return Result<PivEncodingResult, PipelineError>.

var preferred = await encoder.EncodeFileAsync("photo.jpg", PivFileSizeTarget.Preferred);
var custom = await encoder.EncodeFileAsync("photo.jpg", PivFileSizeTarget.FromBytes(16_000));

The immutable result carries JPEG 2000 bytes, output dimensions and landmarks, selected file-size target, crop/region/color evidence, encoding measurements and merged review requirements. See API and the 4.0 migration notes.

CLI

The CLI is a thin wrapper over the library. With the .NET10 SDK installed, build and run it from this checkout:

dotnet build FaceOFFx.sln -c Release
dotnet run --project src/FaceOFFx.Cli -c Release --framework net8.0 -- \
  photo.jpg --filesize-target minimum --output portrait.jp2

Use --filesize-target minimum, preferred, or a positive byte count. --json writes machine-readable evidence; --debug sends logs to stderr. The default image path is INPUT.piv.jp2, with evidence at INPUT.piv.jp2.json. Existing files require --overwrite. Writes use staged files, individual atomic renames and rollback; interrupted processes can leave recovery files adjacent to the output.

Exit code 0 means a portrait was encoded within the selected file ceiling and passed the automated source-support and framing checks. The sidecar keeps enrollment and regional-compression review requirements visible.

Encoding and review

The stored canvas is 480×640, rendered in one uniform affine Lanczos3 pass with native source support and scale at or below 1. The fixed framing ladder retains head resolution, eye position and source margins. Anatomical measurements retain their estimated or verified basis in the result.

The fixed balanced Part 1 recipe uses one tile, one quality layer, irreversible 9/7, ICT, ROI start level 4, 64×64 code blocks and luma utility 1.25 on every luma subband including LL. Chroma utility is 1. Allocation uses the balanced rate-distortion objective within the complete JP2 ceiling.

The face-centered coding mask is the hull of all 68 jaw, brow, eye, nose and mouth landmarks with a fixed 3% jaw-width margin, constructed before allocation. Full-head framing and inner-mask placement have separate review evidence.

Regional accounting uses synthesis-energy-decoder-effective-pass-v3. It apportions actual packet-body payload using spatial synthesis influence and modeled decoder-retained coding benefit. For A RGB24 pixels, the method estimate is 3*A / attributedFaceBytes. Face/outside payload, headers and JP2 boxes reconcile with actual file bytes. The ledger is an engineering measurement for regional review, with its assumptions documented in compression accounting.

The on-card face-region requirement is 24:1 under the accepted regional accounting. The gallery keeps each method estimate visible for that review, alongside actual bytes.

Enrollment qualification requires reviewed ear-attachment and crown measurements, optical capture resolution, frontal pose, neutral expression, uniform background and illumination, trusted source/color history, recognition evidence and issuer/card interoperability. Review regional compression against the applicable NIST requirements and the recorded measurement convention.

File-size targets

The container arithmetic reserves 46 FAC, 88 CBEFF, 750 signature and 6 outer-tag bytes for the named targets. Custom targets expose size-dependent BER wrapper arithmetic through RequiredBiometricValueBytes and RequiredObjectBytes. Confirm that the credential supports the required capacity and verify actual record/signature/tag lengths during issuer serialization.

Source color

Embedded sRGB and EXIF sRGB are recorded automatically. Supported RGB matrix/TRC ICC profiles are converted to sRGB at source resolution. Other embedded profiles produce a request for a supported color-managed export. Untagged pixels are automatically treated as sRGB and recorded as AssumedSrgb, with acquisition/color-history review retained. The source guard permits up to 64 million pixels.

Sample gallery

Each row uses the public library with the same fixed recipe at minimum and preferred ceilings. Source thumbnails are 420 pixels wide; output previews are native independent Pillow/OpenJPEG decodes of the linked JP2 files. Region links display the hash-verified coding mask. Each review record includes bytes, source/mask hashes, color basis, regional estimates and enrollment requirements.

George W. Bush

Jimmy Carter

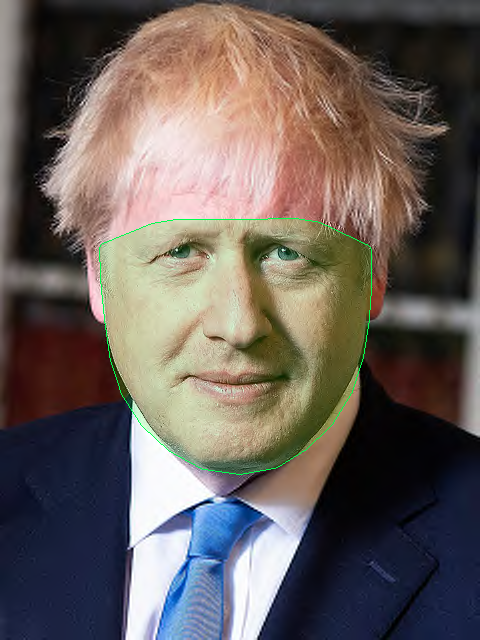

Boris Johnson

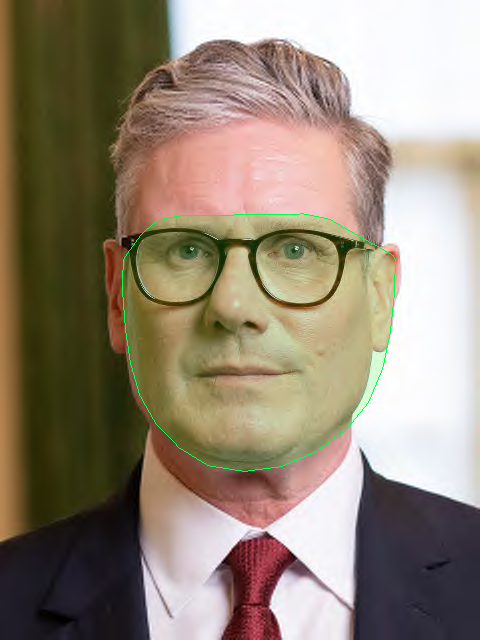

Keir Starmer

John H. Glenn Jr.

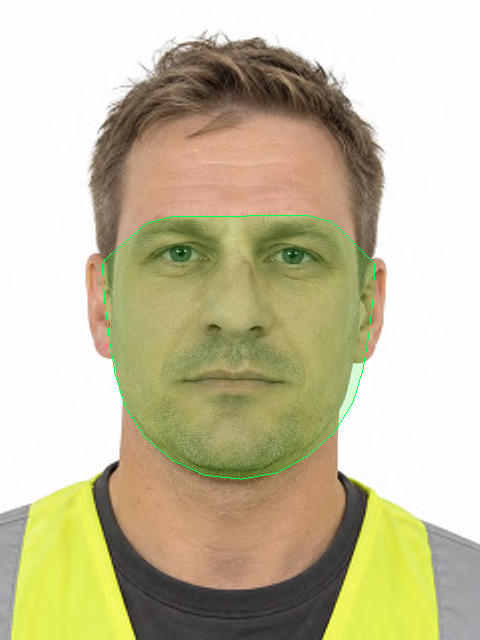

Watermarked construction sample

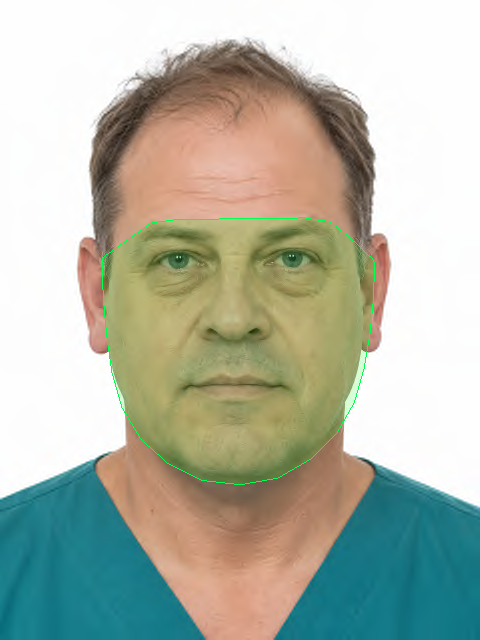

Watermarked medical sample

Generic Guy illustration control

Bush, Carter, Johnson, Starmer and the illustration remain source controls. Construction and medical use the supplied datasets/samples/cardholders/source_watermarked originals, preserving their watermarks and source hashes. Their provenance remains part of enrollment review. The illustration is a detector test control.

John H. Glenn Jr.'s historical portrait is an informational test example. Source credit: NASA, December 1962. Its original asset and hash are recorded in source metadata. Apply NASA's media usage guidelines, including identifiable-person conditions for promotional reuse.

Regenerate with Python, Pillow/OpenJPEG and NumPy installed, and the local watermarked fixtures available:

tests/regenerate_docs_images.sh

Development

The encoder-only codec is vendored in src/CoreJ2K.FaceOFFx, with its license and upstream notices retained. Build from this repository alone using the .NET10 SDK. The complete test matrix also needs the .NET8, .NET9 and .NET10 runtimes:

dotnet build FaceOFFx.sln -c Release
dotnet test FaceOFFx.sln -c Release
dotnet pack src/FaceOFFx/FaceOFFx.csproj -c Release

Public lifecycle is in src/FaceOFFx, PIV rules in FaceOFFx.Core, image/ONNX integration in FaceOFFx.Infrastructure, embedded models in FaceOFFx.Models, and the light CLI in FaceOFFx.Cli. Engineering diagnostics export JP2s and evidence; development tooling independently renders their previews:

dotnet run --project src/FaceOFFx.Diagnostics.Cli -c Release --framework net8.0 -- \
  docs samples --input photo.jpg --output artifacts/review
python3 scripts/ReadmeGallery/render_diagnostics.py artifacts/review

See contributing, security, the vendored codec inventory and the historical dependency SBOM. Regenerate the complete dependency graph for release. Handle portraits and evidence under the enrollment system's authorization, access-control and retention policies.

Credits and license

FaceOFFx derives from FaceONNX, using RetinaFace, PFLD, ONNX Runtime, ImageSharp, the vendored CoreJ2K encoder, CSharpFunctionalExtensions and Spectre.Console. Dependency licenses accompany package metadata and codec notices.

PIV requirements are drawn from FIPS 201-3, NIST SP 800-76-2, SP 800-73-5, SP 800-85B, INCITS 385 and ISO/IEC 15444-1. FaceOFFx is licensed under MIT.
