UmbracoPrism 3.0.0

One source. A spectrum of brands.

Umbraco Prism

dotnet add package UmbracoPrism

One Umbraco instance. Multiple branded portals. Native mobile app included.

Multi-tenant website branding and identity at runtime. Add a mobile app with one click.

---

Try it Now — No Install Required

Click the button to spin up the full Umbraco Prism stack in a browser — no local setup, no Docker, no .NET install. GitHub handles everything. The Codespace is completely throwaway when you're done.

The stack starts automatically — watch the terminal at the bottom of your screen. It polls until Keycloak, the Aspire Dashboard, and the TestSite are all ready (first boot: ~3 minutes), then prints the URLs and credentials. When the Aspire Dashboard port is detected VS Code opens it in your browser automatically.

1. Wait for the terminal to print 🎉 Umbraco Prism is ready!
2. Click the TestSite URL → log in with demo@prism.local / password (Keycloak SSO)
3. Browse My Service Requests to see the demo service blueprint in action

Credentials at a glance:

What	Username	Password
TestSite (Keycloak SSO)	demo@prism.local	password
Umbraco backoffice (/umbraco)	admin@prism.local	PrismLocal!12345
Keycloak admin console	admin	admin

When you're done: go to github.com/codespaces, find your Codespace, and click Stop (or Delete to free quota immediately). Stopping halts billing; the Codespace resumes from where you left off.

---

🚀 Interactive Walkthrough — "Payment Demo Service Blueprint"

Once your stack is running, follow the step-by-step guide to see the demo service blueprint in action — with explanations of what Umbraco.Prism and the Umbraco backoffice are doing at each stage.

→ Full walkthrough: docs/walkthroughs/payment-demo.md

The walkthrough covers:

• Logging in via Keycloak SSO and submitting a payment form
• Waiting states — the form pauses and persists while a reviewer processes it (Prism's core pattern)
• Watching the service request hub show real-time status updates
• Switching to the reviewer role and advancing the service request from the admin panel
• The member page auto-updates without a refresh when the reviewer completes their action
• Behind the scenes: service blueprint definitions, state machines, the Prism process manager engine, and how persistence and real-time updates work
• Exploring further: editing service blueprint definitions, monitoring engine logs in Aspire, testing async patterns

Alternative: Planning Application walkthrough for a complete end-to-end journey covering authoring, public submission, member continuation, and back-stage review.

---

Try the Demo — Local Setup

Get from clone to running in five minutes. No Azure account needed.

One-time setup:

• .NET 10 SDK (Download)
• Trust the .NET dev certificate — run dotnet dev-certs https --trust
• Docker Desktop running (Download)
• Node.js 20+ (Download)
• Frontend dependencies: cd src/UmbracoPrism.Client && npm install

VS Code tip: the C#: Aspire (Full Stack) launch now validates the .NET 10 SDK and Docker first. This repo uses the Aspire AppHost SDK and NuGet packages, so you do not need dotnet workload install aspire.

Start the full stack:

dotnet run --project src/UmbracoPrism.AppHost

Then:

1. Open the Aspire dashboard at https://localhost:17214
2. Click the TestSite URL → log in with demo@prism.local / password
3. Browse My Service Requests to see the demo service blueprint in action
4. The MockBusinessApp runs alongside at https://localhost:7245 — it accepts the same demo credentials and powers the service blueprint engine

Optional: Explore Keycloak admin at https://localhost:8443/admin (admin / admin).

Why this matters for local dev:

• The local Keycloak uses standard OIDC code-flow scopes — no offline tokens needed for a fresh clone.
• Prism preserves the id_token in the session, enabling logout callbacks to Keycloak with the required id_token_hint.
• MockBusinessApp trusts the browser-facing Keycloak authority (https://localhost:8443), so the service request flow validates bearer tokens against the public issuer, not the internal container URL (http://localhost:8080).
• Aspire runtime state lives under artifacts/aspire/testsite-runtime/ — the demo and Playwright suite never mutate the standalone TestSite database at src/UmbracoPrism.TestSite/umbraco/Data/.

For detailed setup, troubleshooting, and architecture: See ASPIRE_DEV.md.

---

What You Get

Prism is a NuGet package providing enterprise-ready multi-tenancy and extensibility for Umbraco. Below is what the Core library provides. The TestSite is a reference implementation showing how to extend Prism for a business domain (vinyl records).

Multi-Tenant Web — One Instance, Hundreds of Brands (🔵 Core)

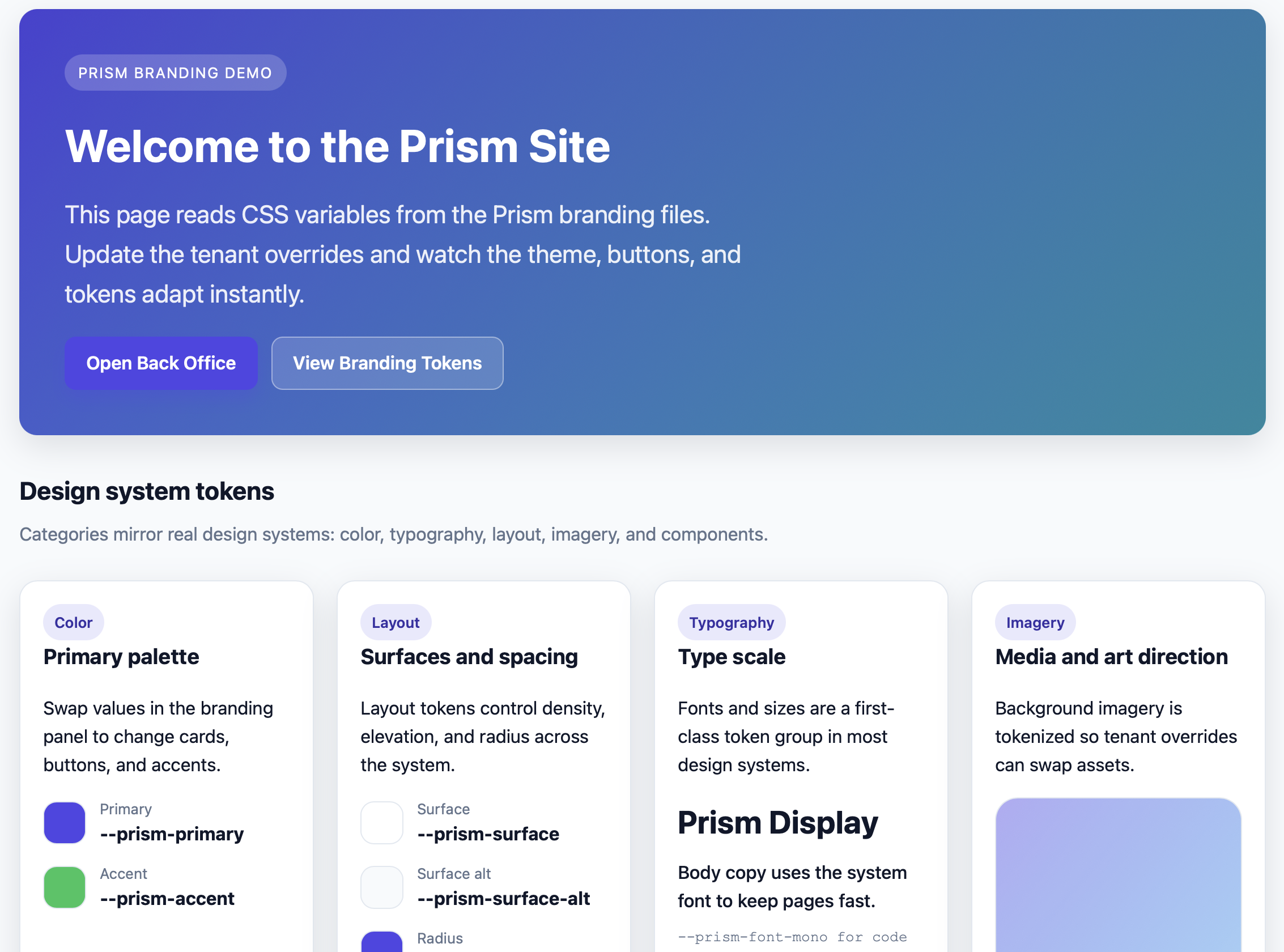

Serve distinct branded portals from one Umbraco instance. Runtime branding, domain resolution, tenant isolation.

Web features:

• Domain-based tenant resolution — each client gets their own hostname

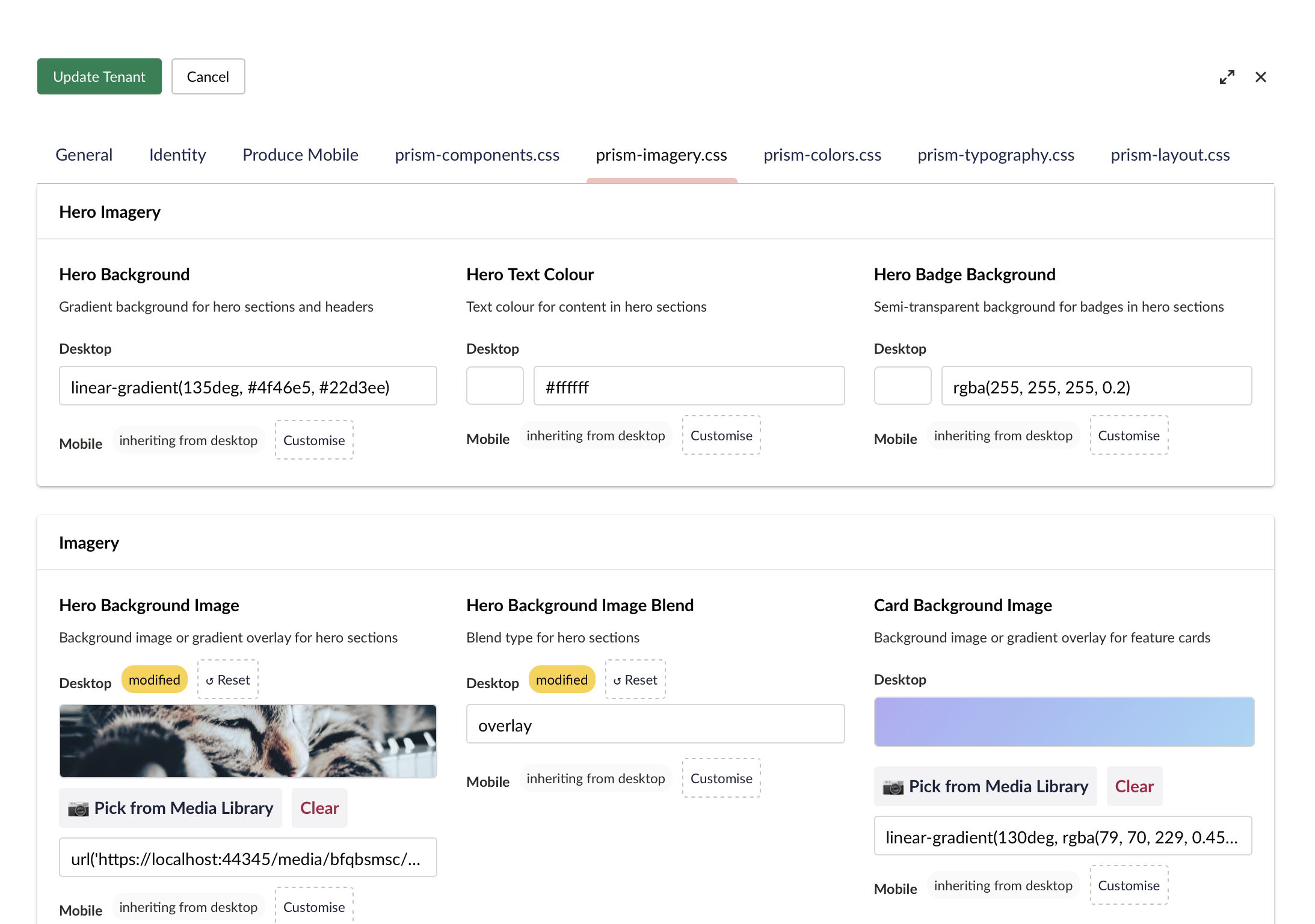

• Live branding editor — CSS variables update without deploy

• Branding as a Design System — annotated CSS variables become labeled form fields, grouped into sections (Colors, Typography, Components), with type-aware editors (color pickers, sliders, text inputs)

  @property --prism-primary {
    syntax: '<color>';
    inherits: true;
    initial-value: #4f46e5;
  }

  :root {
    /* @prism section: Brand Colours | label: Primary Brand Colour | description: Main brand colour used for buttons and links */
    --prism-primary: #4f46e5;
  }


  → Branding Design System →

• Per-tenant OIDC — any OIDC-compliant provider (Entra ID, Keycloak, etc.), zero local Members

• Downstream auth — propagate tenant identity to internal APIs

• Tenant isolation — authorization policies enforce data boundaries

→ Umbraco Setup Guide

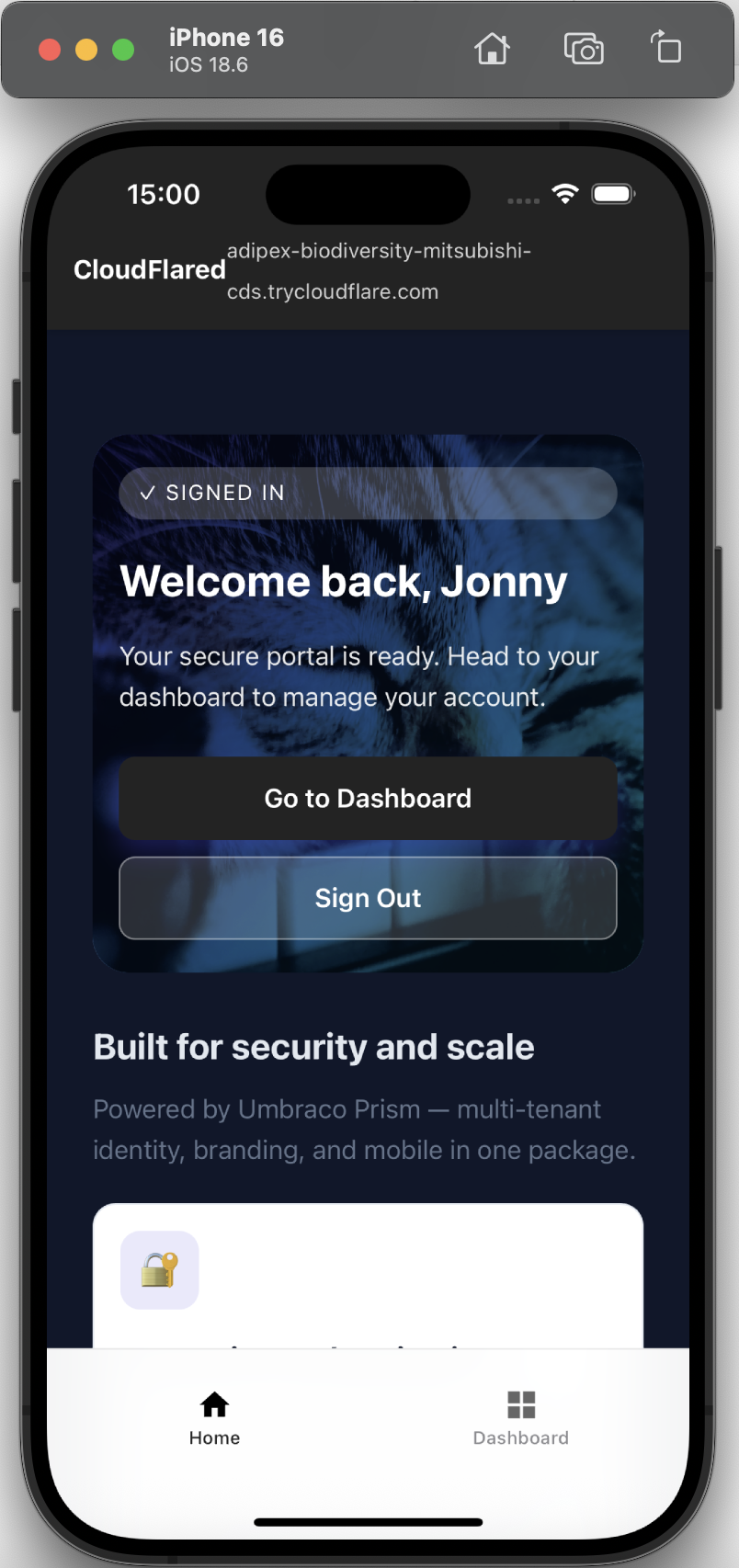

Produce Mobile — Generate Apps from Backoffice (🔵 Core)

Turn tenant settings into iOS/Android apps. No complex native coding, just click Produce Mobile.

Mobile features:

• Biometric login (Face ID, fingerprint) — skip OIDC on return
• Push notifications (FCM/APNs) — content or API triggered
• Offline-ready layouts with safe-area handling
• Tenant branding at runtime (colors, logo, splash)

Run in simulator:

npm run bootstrap:ios

→ Mobile Setup | Biometric Auth

Notification Infrastructure — Extend for Your Business Logic (🔵 Core)

Prism provides a foundation for sending notifications. The Core library includes:

• Generic notification service (IPrismNotificationService) — Send to members, genre subscribers, or broadcast
• Config-driven event handling — PrismContentPublishedHandler automatically triggers notifications when content is published
• Subscription persistence — Built-in database schema and queries for tracking member notification preferences
• Rate limiting — Prevent notification spam with automatic throttling

Your app extends this with business-specific handlers and domain models. For example, the TestSite demo includes a PrismVinylNotificationController that triggers "back-in-stock" alerts when a vinyl record is republished.

Why this design matters for enterprise: You get the extensibility platform out of the box. Add your business logic without rebuilding the notification infrastructure.

→ Notifications Architecture | Notifications API Reference

---

Quick Start

1. Install

dotnet add package UmbracoPrism

Prism registers automatically via PrismComposer — no manual service registration needed.

2. Configure

Add to appsettings.json:

{
  "Prism": {
    "VaultUri": "https://your-keyvault.vault.azure.net/"
  }
}

For local dev without Azure Key Vault, see Local Authentication Walkthrough.

3. Run

dotnet run

Prism auto-creates document types (homePage, memberDashboard) on first startup.

4. Add Your First Tenant

In backoffice:

1. Settings → Prism Dashboard
2. Add tenant (hostname, identity settings, branding)
   • OIDC tenants (Entra ID, Keycloak, etc.): enter OIDC authority and client ID, then provide the Key Vault secret name as the OidcClientSecretReference with provider azure-key-vault; the localhost Keycloak demo is the only inline-secret exception
3. Visit the hostname — see branded portal

→ Full Setup Guide

---

How It Works

Multi-tenancy at runtime: Middleware resolves hostname to tenant. One content tree serves hundreds of portals.

Stateless auth: No local Members. Identity deferred to OIDC providers (any OIDC-compliant system: Entra ID, Keycloak, etc.). Confidential client secrets resolve through Key Vault or the repo-owned localhost demo exception.

Secure-by-default secrets: Production tenants use vault-backed secret references, never raw values in management responses. The localhost Keycloak demo is the only inline-secret path, and runtime rejects inline generic OIDC secrets anywhere else.

Mobile generation: Tenant settings → iOS/Android app. Run in simulator immediately.

Downstream auth: Pass tenant identity to internal APIs without shared state.

---

Features

Prism Core provides:

• Multi-tenant web domain resolution and branding
• Per-tenant OIDC integration (any provider: Entra ID, Keycloak, etc.)
• Tenant isolation policies and secure secret management
• Notification infrastructure (event-triggered, subscription-based, rate-limited)
• iOS/Android app generation from backoffice settings
• Biometric login for mobile (Face ID, fingerprint)
• Push notifications (FCM/APNs) from Umbraco events or custom triggers
• Offline-ready layouts for mobile

Your app extends with:

• Service blueprint definitions and state machines
• Custom business logic and validation
• Application-specific notification handlers
• Domain models and business processes

→ Full Documentation

---

Documentation

Guide	Description
Service Blueprint Editor
Embedding the Service Blueprint Editor	Primary integrator recipe. Build a business app on top of Prism. Implement ServiceBlueprintSource, wire the editor, extend the action catalog.
AI-Ready Service Blueprint Authoring	Let an AI agent (Claude Code or any MCP client) list, read, validate, simulate, and save your service blueprints — MapServiceBlueprintAuthoringApi() / MapServiceBlueprintAuthoringMcp().
Gateway-First Authoring	How the gateway-and-route model works. Every move from one stage to another happens through a gateway. Worked example: the Leave Request 5-gateway fan-in pattern.
Walkthroughs
Service Blueprint Walkthrough — Payment Demo	Step-by-step demo of the payment service blueprint — shows Prism's core "submit now, finish later" pattern with waiting states, real-time updates, and reviewer actions
Alternative Walkthrough — Planning Application Complete	Full end-to-end service blueprint covering editor authoring, public submission, member continuation, and back-stage review — demonstrates the complete service blueprint lifecycle
Setup & Configuration
Secret Management	Configure OIDC client secrets for production tenants, understand local dev demo
Umbraco Setup	Install Prism, configure tenants, seed content
Biometric Setup	Generate signing/encryption keys for mobile biometric auth
Push Notifications	Configure FCM (Android) and APNs (iOS) for push
Notifications Design	Push notification architecture and API reference
Design Docs
Notifications Architecture	Internal design: notification system layers
Notifications Backend	Internal design: backend API and service layer
Notifications Mobile	Internal design: Capacitor plugin integration
Notifications Umbraco	Internal design: Umbraco content hooks and demo site

→ Full Documentation Index

---

Architecture

Prism Core provides:

Runtime layer:

• PrismTenantMiddleware — resolves hostname to tenant
• IPrismContext — scoped service with tenant/theme data

Identity layer:

• Dynamic OIDC — swaps ClientId, Authority, Issuer per tenant
• IPrismUserContext — current user claims and tenant
• SecretVaultService — Azure Key Vault (Managed Identity in prod, Azure CLI local)
• Downstream flow — propagate tenant identity to APIs

Notification layer:

• IPrismNotificationService — Generic notifications API (send to members, subscribers, or broadcast)
• PrismContentPublishedHandler — Config-driven event handler for Umbraco publish events
• Subscription persistence — Database schema for managing notification preferences
• Rate limiting — Automatic throttling to prevent spam

Secret Management:

• Entra ID tenants (production): Secrets stored in Azure Key Vault, referenced by SecretKeyName
• Generic OIDC tenants (production): Secrets stored in Azure Key Vault, referenced by OidcClientSecretProvider = "azure-key-vault" plus OidcClientSecretReference
• Local dev demo (Keycloak): Repo-owned secret uses OidcClientSecretProvider = "inline" only for the seeded localhost tenant path
• Management API/UI: Responses expose HasOidcClientSecret and OidcClientSecretProvider, never the raw secret or reference value
• All confidential-client flows fail closed if a secret cannot be resolved at runtime

Your application extends Prism with:

• Business-specific notification handlers (see PrismVinylNotificationController in TestSite)
• Service blueprint endpoints and state machines
• Domain models and validation logic
• Custom API routes for your business processes

→ Secret Management Guide | Architecture Docs

---

Prerequisites

• .NET 10.0 (Download)
• Node.js 20+ (Download)
• Docker Desktop — for local demo with Aspire (Download)
• Azure Key Vault (production) or local dev without vault (see setup guide)
• OIDC Provider — any OIDC-compliant system (Keycloak included for local dev; Entra ID or others for production)

Client dependencies: Run before first build:

cd src/UmbracoPrism.Client && npm install

---

Setup & Development

Local Dev Tunnel (Mobile Testing)

For testing OIDC sign-in on mobile devices with an external OIDC provider, use scripts/dev/start-trycloudflare.sh:

bash scripts/dev/start-trycloudflare.sh

Automates:

• Cloudflare tunnel for https://localhost:<port>
• OIDC redirect URI update (for your provider)
• Prism tenant hostname sync
• Cleanup on exit

Security: Dev use only. Mutates your OIDC provider app config and local database.

→ Full tunnel docs in README section below

Storybook Tests (UmbracoPrism.Client)

Storybook is used for component-driven tests with the Storybook test runner + Playwright.

Local usage:

cd src/UmbracoPrism.Client
npm install
npm run storybook

In a second terminal:

cd src/UmbracoPrism.Client
npm run test-storybook

VS Code (Optional):

Optionally, install the Playwright Test extension for a convenient Testing view UI to run Playwright tests. Tests are in src/UmbracoPrism.Client/tests. You can also run npm run test:playwright:ui for the interactive runner without the extension.

Headless multi-browser + WCAG checks (recommended):

cd src/UmbracoPrism.Client
npm run test-storybook:all

CI usage (GitHub Actions):

The workflow in .github/workflows/ci-tests.yml runs the following:

cd src/UmbracoPrism.Client
npm ci
npx playwright install --with-deps
npm run test-storybook:ci:all

Localhost auth/session Playwright regressions

These behavioural-contract tests run against the real Aspire stack rather than Storybook. The suite validates Aspire prerequisites, boots its own UmbracoPrism.AppHost session, waits for the dashboard plus seeded app resources to be ready, then signs into the seeded Keycloak demo user and restarts the whole localhost stack mid-run to verify session continuity.

Before running:

• Docker Desktop must be running
• dotnet dev-certs https --trust must already be done
• The default Aspire ports (17214, 44345, 7245, 8443) must be free because the suite owns the stack lifecycle and will not attach to an existing or partial stack

cd src/UmbracoPrism.Client
npm run test:playwright:localhost-auth

The suite uses the seeded demo identity from keycloak/realm-export.json: demo@prism.local / password.

Stable seeded content contract: on a clean TestSite database, Development startup deterministically repairs the Umbraco nodes the localhost auth/service request flows use — Home (/), Dashboard (/dashboard), Get in Touch (/get-in-touch, service blueprint key community-enquiry), My Service Requests (/my-service-requests), plus the Settings node mobile nav entries for Home/Dashboard/My Service Requests. The Razor views resolve those destinations from published content, so route lookup does not depend on root-node ordering.

Core Tests (UmbracoPrism.Core)

dotnet test UmbracoPrism.sln -c Release --filter FullyQualifiedName~UmbracoPrism.Core.Tests

Dependency Vulnerability Check

Run a transitive package vulnerability scan for the Core project:

dotnet list src/UmbracoPrism.Core/UmbracoPrism.Core.csproj package --vulnerable --include-transitive

If vulnerabilities are reported, prefer upgrading the direct package first. For transitive-only issues, add a top-level package reference in the relevant .csproj to force a patched version.

VS Code (Optional):

Optionally, install the .NET Test Explorer extension for a convenient Testing view UI to run the Core tests. Tests can also be run from the command line using dotnet test.

Packaging & Marketplace

Build the backoffice assets:

cd src/UmbracoPrism.Client
npm install
npm run build

Pack the NuGet package:

dotnet pack src/UmbracoPrism.Core/UmbracoPrism.Core.csproj -c Release -o artifacts

Marketplace metadata:

See umbraco-marketplace.json for the listing metadata (icon, screenshots, tags, description).

Accessibility (WCAG) checks:

Storybook test runner runs axe checks (WCAG 2.0/2.1 A/AA) via src/UmbracoPrism.Client/.storybook/test-runner.ts.

To opt out for a specific story, set parameters: { a11y: { disable: true } } in your .stories.ts file:

export const MyStory = {
  render: (args) => <MyComponent {...args} />,
  parameters: {
    a11y: { disable: true }  // Disables WCAG checks for this story
  }
};

Local Authentication Walkthrough

1. Choose Your OIDC Provider

Option A: Quick Start with Keycloak (Included)

• No setup needed; the local Keycloak is already running on https://localhost:8443 with the seeded demo realm
• Use for immediate testing without external OIDC provider configuration
• User: demo@prism.local / password: password

Option B: Production-Style Setup (Entra ID, Generic OIDC, etc.)

• Create App Registration in your OIDC provider
• Redirect URI: https://localhost:[PORT]/signin-oidc
• Note the Client ID and Authority URL from your provider

2. Local Auth (Azure Key Vault)

If using an external OIDC provider and storing secrets in Key Vault:

az login --allow-no-subscriptions

Allows SecretVaultService to access Key Vault in local dev.

Key Vault Setup:

• Add secret (e.g., tenant-a-secret) with your OIDC Client Secret
• Grant Key Vault Secrets User to your identity

3. Tenant Setup

In Prism Dashboard (backoffice):

For Keycloak (local dev):

• Hostname: localhost:[PORT]
• OIDC Authority: https://localhost:8443/realms/prism-dev
• OIDC Client ID: prism-client
• Secret Provider: inline (only for demo; leave as is)

For External OIDC Provider (Entra ID, generic OIDC, etc.):

• Hostname: localhost:[PORT] (or your domain)
• OIDC Authority: Authority URL from your provider
• OIDC Client ID: Client ID from your provider
• Secret Provider: azure-key-vault
• Secret Reference: tenant-a-secret (or your vault secret name)

The dashboard does not round-trip raw OIDC client secrets through edit responses; production updates are reference-based, and only the seeded localhost Keycloak demo exposes an inline replace field.

4. Downstream API Auth

If your Prism frontend needs to call a secure backend (e.g., a "Member Dashboard" API), Prism can flow the current tenant’s identity and access token to that downstream system.

1. Backend API: Enabling Prism Auth

In your downstream ASP.NET Core API, register the Prism authentication handler. This allows the API to accept multi-tenant tokens from any CIAM tenant registered in your system.

// In your API's Program.cs
builder.Services.AddPrismAuthentication(builder.Configuration);

2. Backend API: Resolving the Tenant

Use the Prism identity extensions to resolve which brand the user belongs to. This ensures data isolation at the API level.

app.MapGet("/api/backoffice/me", (IConfiguration config, ClaimsPrincipal user) =>
{
    // Resolves the tenant from config (default) or a custom resolver
    var tenant = user.GetPrismTenant(PrismResolvers.FromConfig(config));

    if (tenant == null) return Results.Unauthorized();

    return Results.Ok(new {
        Brand = tenant.DisplayName,
        Code = tenant.Code
    });
}).RequireAuthorization();

3. Frontend: Calling the API

From your Umbraco site, use IPrismContext to automatically generate the correct Authorization header containing the user's access_token.

public async Task<string> GetMemberDataAsync()
{
    using var client = new HttpClient();
    // Automatically handles token extraction and refresh logic
    client.DefaultRequestHeaders.Authorization = await PrismContext.GetAuthorizationHeaderAsync();

    return await client.GetStringAsync("https://your-api.com/api/backoffice/me");
}

---

Sample Projects

UmbracoPrism.TestSite — Reference Umbraco v17 application. Shows a complete example of extending Prism for a business domain (vinyl record store). Includes:

• OIDC setup and tenant branding
• Custom notification handler for "back-in-stock" alerts
• Service blueprint demonstration (member submission → staff review)
• Pre-configured tenant definitions for local development

Use this as a template for building your own application on top of Prism Core.

UmbracoPrism.MockBusinessApp — Minimal service blueprint API. Shows how to implement the notification and service blueprint endpoints that Prism calls. Demonstrates AddPrismAuthentication and multi-tenant data isolation for backend services.

→ See Local Authentication Walkthrough

---

Stack

• Umbraco: v17.0+
• .NET: 10.0
• Auth: Stateless OIDC (any OIDC-compliant provider), Azure Key Vault, Managed Identity
• Mobile: Capacitor, TypeScript, Storybook

---

Phone Auth via Cloudflare Tunnel

For OIDC sign-in on mobile devices with an external provider, use HTTPS tunnel (most OIDC providers require https:// or http://localhost only).

No Domain (Temporary URL)

brew install cloudflared
cloudflared tunnel --url https://localhost:44345

Or use helper:

bash scripts/dev/start-trycloudflare.sh

Add redirect URI in your OIDC provider:

https://<random>.trycloudflare.com/signin-oidc

Helper script auto-rotates stale trycloudflare URIs.

Stable Hostname (Custom Domain)

cloudflared tunnel login
cloudflared tunnel create prism-dev
cloudflared tunnel route dns prism-dev prism-dev.<your-domain>

Create ~/.cloudflared/config.yml:

tunnel: <tunnel-id>
credentials-file: /Users/<you>/.cloudflared/<tunnel-id>.json

ingress:
  - hostname: prism-dev.<your-domain>
    service: https://localhost:44345
    originRequest:
      noTLSVerify: true
      httpHostHeader: localhost:44345
  - service: http_status:404

Run:

cloudflared tunnel run prism-dev

Redirect URI:

https://prism-dev.<your-domain>/signin-oidc
